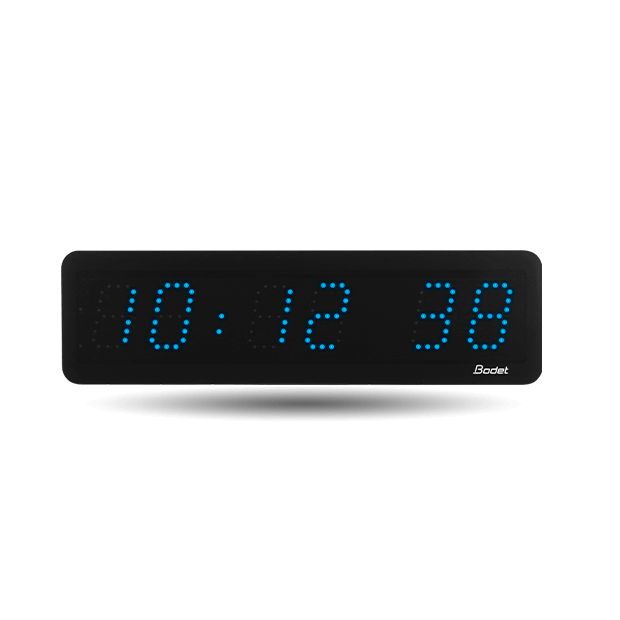

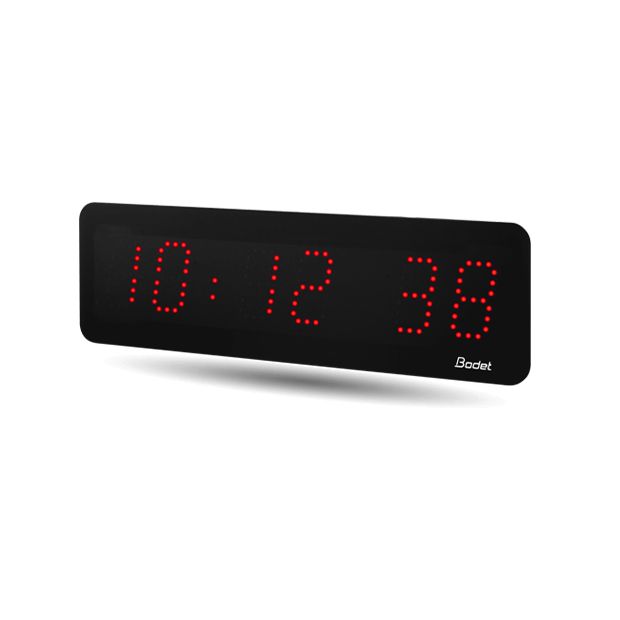

Bodet Style 5S / 7S / 10S – Indoor LED Clock, PoE / Wi-Fi

The Bodet Style 5S / 7S / 10S LED Clock range provides accurate and highly visible digital time displays for indoor environments. Available with 5cm, 7cm or 10cm-high LED digits, the clocks display hours, minutes and seconds while also supporting additional information such as the date, week number, temperature and timer functions.

With multiple synchronisation technologies and five available LED colours, the Style S range can be adapted to offices, transport facilities, commercial buildings, education environments and other locations requiring clear and dependable time information.

Hours, Minutes and Seconds Display

Unlike conventional hour-and-minute displays, the Style 5S, 7S and 10S models continuously provide hours, minutes and seconds for applications where more detailed time information is required.

Depending on the configuration, the display can also alternate between time and additional information including:

• Date
• Week number
• Temperature
• Timer information
• Stopwatch or chronometer information

An integrated temperature probe enables compatible models to display ambient temperature without requiring a separate external display.

Three Display Sizes

The Bodet Style 5S / 7S / 10S LED Clock range includes three digit sizes to suit different room dimensions and viewing requirements:

• Style 5S: 5cm digits with an optimal viewing distance of approximately 20m
• Style 7S: 7cm digits with an optimal viewing distance of approximately 30m
• Style 10S: 10cm digits with an optimal viewing distance of approximately 40m

A wide 120° viewing angle helps maintain clear visibility when the clock is viewed from different positions.

Timer and Stopwatch Functions

For applications requiring elapsed or remaining time, an optional timer keyboard can be connected to provide count-up and countdown operation from 0 to 24 hours.

This extends the clock beyond conventional time display and makes it suitable for environments where processes, activities or events need to be timed accurately.

Multiple Synchronisation Options

The Style S range supports numerous time distribution technologies, allowing the clocks to integrate with both network-based and traditional synchronised time systems.

Available configurations include:

• NTP over Ethernet
• NTP over Wi-Fi
• AFNOR
• DHF wireless synchronisation
• DCF wireless synchronisation
• Impulse synchronisation
• Independent operation

The clock can continue displaying time if external synchronisation is temporarily unavailable, maintaining local timekeeping until synchronisation is restored.

Five LED Colours

Users can select from five LED colours to suit the surrounding environment:

• Red
• Green
• Yellow
• Blue
• White

Display brightness can also be adjusted to provide comfortable readability and better integration into different indoor lighting conditions.

Bodet Style 5S / 7S / 10S LED Clock Features

• Indoor SMD LED digital clock range
• Style 5S, 7S and 10S models
• Hours, minutes and seconds display
• 5cm, 7cm and 10cm digit heights
• Approximate viewing distances of 20m, 30m and 40m
• 120° viewing angle
• Fixed or alternating information display
• Date display
• Week number display
• Integrated temperature display capability
• Timer and chronometer display
• Optional count-up and countdown keyboard
• Count-up or countdown range from 0 to 24 hours
• Red, green, yellow, blue or white LEDs
• Adjustable display brightness
• NTP over Ethernet
• NTP over Wi-Fi
• AFNOR synchronisation
• DHF wireless synchronisation
• DCF wireless synchronisation
• Impulse synchronisation
• Independent operation
• Continued time display during temporary loss of synchronisation
