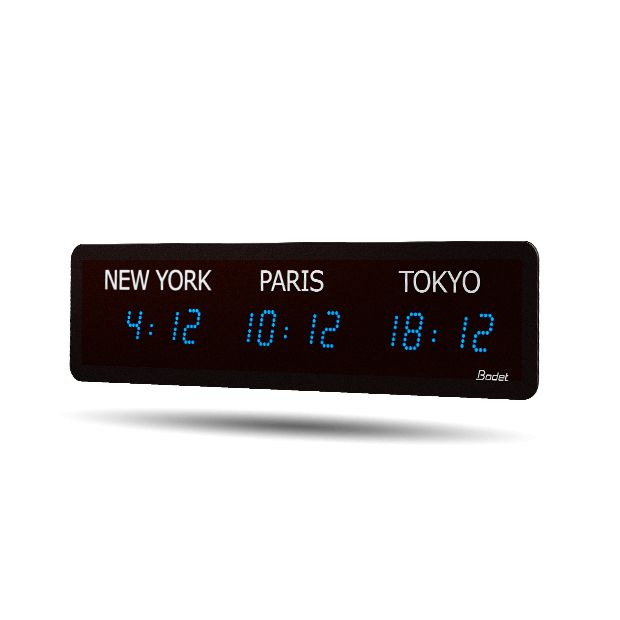

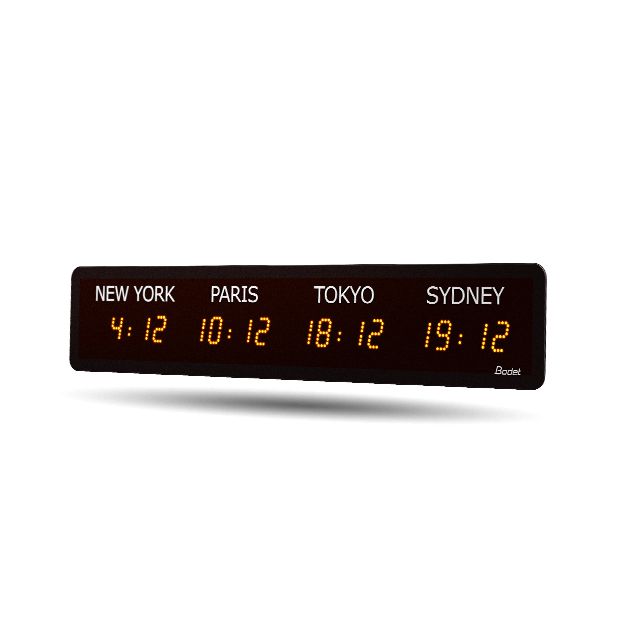

Bodet LED Multi Zone Clocks with option for 3 to 7 Cities / Zones

The Bodet LED Multi Zone Clock provides a clear simultaneous display of 3 to 7 different world time zones, making it ideal for airports, corporate offices, trading environments, international organisations and other facilities that regularly work across multiple locations.

Each city is managed according to its own time zone, allowing the displayed times to update independently. Automatic summer/winter time changes further reduce manual adjustment and help keep each location accurate throughout the year.

Clear Multi-City Time Display

Each configured location is identified using 3cm-high characters, while the corresponding time is displayed using larger 5cm-high LED digits.

The display provides optimal viewing distances of approximately:

• 12 metres for city names
• 20 metres for time digits

A wide 120° viewing angle helps maintain readability across larger rooms and shared spaces.

Users can select the required cities and configure the display to suit their installation, including LED brightness adjustment across four levels.

Multiple Time Synchronisation Options

The Bodet LED Multi Zone Clock supports a broad range of time distribution technologies, providing flexibility for both standalone installations and centrally synchronised clock systems.

Available time distribution options include:

• NTP over Ethernet
• NTP over Wi-Fi
• AFNOR
• DHF
• DCF Radio
• ALS Radio
• Independent operation

Network-based versions can integrate with existing IT infrastructure, while alternative synchronisation methods allow the display to operate within existing Bodet or third-party time systems.

Automatic Time Zone Management

Each city displayed on the clock follows its own configured time zone rather than relying on a single offset for the entire display.

Automatic seasonal time changes help ensure locations remain correct when daylight saving or summer/winter time adjustments occur.

Both 12-hour and 24-hour display formats are supported.

Adjustable Brightness and Eco Mode

Four luminosity levels allow display brightness to be adjusted for different indoor environments.

A programmable power-saving period can also be configured using the built-in Eco mode, helping reduce unnecessary energy use when the clock does not need to remain fully illuminated.

Programming can be performed using the two integrated capacitive control buttons.

Designed for Professional Indoor Environments

The black metal enclosure provides a clean, professional appearance suitable for corporate, transport and financial environments.

Overall dimensions depend on the number of time zones selected, ranging from approximately 87.5 × 21.3cm to 193.5 × 21.3cm.

The clocks are designed for indoor wall mounting and operate from a 100–240V AC power supply.

Bodet LED Multi Zone Clock Features

• Simultaneous display of 3 to 7 cities or time zones
• Independent time zone management for each city
• 12-hour or 24-hour display
• Automatic summer/winter time changes
• 5cm-high LED time digits
• 3cm-high city characters
• Approximate 20m viewing distance for time
• Approximate 12m viewing distance for city names
• 120° viewing angle
• Four brightness levels
• Programmable Eco power-saving mode
• Two capacitive programming buttons
• NTP over Ethernet
• NTP over Wi-Fi
• AFNOR synchronisation
• DHF synchronisation
• DCF Radio support
• ALS Radio support
• Independent operation
• Black metal casing
• Wall-mounted installation
• 100–240V AC power supply
• Dimensions from approximately 87.5 × 21.3cm to 193.5 × 21.3cm
• Designed for airports, offices, trading environments and international facilities

LED Multi Zone Clocks Datasheet
