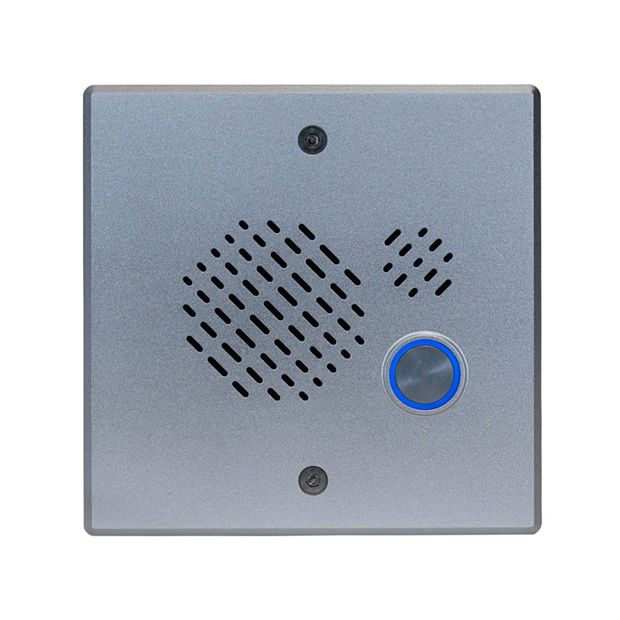

Algo 8203 Vandal – Proof SIP Intercom, PoE

Algo 8203 Vandal-Proof SIP Intercom is an IP door-phone for hands-free visitor communication at a secure entrance door or gate, access point, and room intercom applications. This IP intercom / door-phone is outdoor-rated, and is also a fully compliant 3rd party SIP endpoint. As a result, the 8203 is compatible with most hosted / cloud and premise-based VoIP telephone systems.

The 8203 Vandal-Proof SIP Intercom is UL/CSA, FCC and CE certified. A surface mount bracket is included for wall mounting, however, the intercom station can be flush mounted into a double gang box.

Algo 8203 Vandal – Proof SIP Intercom Features

• Secure SIP using TLS and SRTP.
• Wideband HD voice for high intelligibility speech.
• Rugged low-profile appearance to dissuade vandalism.
• Initiates or accepts intercom calls.
• Outdoor rated – conformal coated electronics.
• back lit tactile silicon rubber call button.
• Seamless relay activation via telephone keypad for secure door or gate entry.
• Configuration via user friendly web interface or auto-provisioning.
• PoE (IEEE 802.3af).

Wideband Audio for Optimum Speech Clarity

The Algo 8203 Vandal-Proof IP Intercom supports Wideband G.722 codec (HD Voice) for optimum speech clarity and intelligibility. This IP intercom delivers reliable voice communication for building entry or access point communication with visitors and guests. The 8203 is also suitable for room intercom applications.

Integrated IP Intercom Door Control Relay

For user convenience, the 8203 Vandal-Proof SIP Intercom allows door unlock control activated by a telephone key press from the answering or calling device. This requires a relay from the optional 8063 IP Door Controller, which can be securely located away from the public facing intercom. Alternatively, an internal relay on the 8203 is available for door control where the entrance is a lower security risk.

Algo 8203 Vandal – Proof SIP Intercom -Simple & Intuitive Web GUI

Installation and configuration are via a simple intuitive web interface, however, the 8203 also supports centralised provisioning. Before the device is registered with a SIP server, a simple press of the 8203 intercom call button when connected to the network will “speak” the IP address of the device. This time saving feature results in efficient registration and configuration via a simple and intuitive web browser GUI. Algo’s Network Device Locator is also available as a tool for obtaining an IP address for a device.

UC Integration – Use Any Phone or Device to Communicate

Integration with most hosted / cloud or premise VoIP telephone systems ensures that the Algo 8203 can be configured to communicate with any device, phone or client that is part of the UC environment.

To sum up, the Algo 8203 is an outdoor-rated IP intercom / door-phone. The endpoint is powered via PoE  (IEEE 802.3af). A surface mount bracket is included for easy wall installation, however, the intercom fits a standard double gang box for flush mounting. The product is CSA/UL, FCC and CE certified.

Algo 8203 Vandal – Proof SIP Intercom Datasheet
