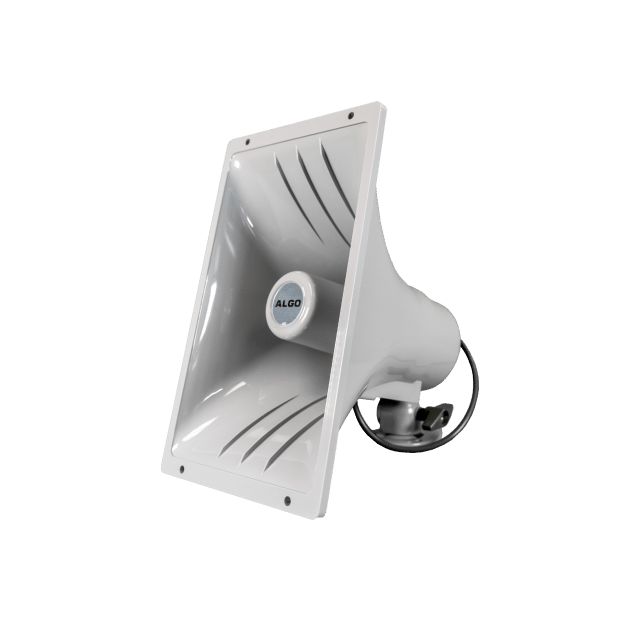

Algo 1186 Analog Horn Speaker
$187.00
If pre-shipment programming, onsite installation or remote support services are required, please ask us for Quote.
- Estimated delivery time for items in stock is 3-4 days.
- Estimated delivery time for backorders will be advised by email.
- For large projects or quantity orders, please email us for project price.
Algo 1186 Analog Horn Speaker is an accessory for the 8180 IP Audio Alerter. The analog horn speaker is particularly useful when additional volume is required or the application is outdoors. For example, a workplace which is expansive (i.e., warehouse) or where hearing protection is worn and/or ambient noise levels are high (i.e. machine shop).
Algo 1186 Analog Horn Speaker Features
- Outdoor rated 8 ohm horn speaker accessory for the 8180 IP Audio Alerter.
- Telephone loud ringing, voice paging and alerting.
- Excellent audio performance for intelligibility and clarity of voice page / public address (PA) announcements.
- UV stabilised impact resistant plastic for outdoor use.
- Constructed using corrosion resistant stainless steel base materials.
- Three-axis adjustable with two large ergonomic T-knobs enables precise aiming regardless of mounting position.
- Powered by 8180 or 1825PM products.
- Ideal for manufacturing plant / factory, utility, warehouse, machine shop, garage, yard, farm, and parking lot environments.
- Product dimensions: 11.8″ x 6.6″ x 10.2″ (30cm x 16.8cm x 25.8cm)
Algo 1186 is the recommended horn speaker accessory for the Algo 8180 and 1825PM products. Note: As an alternative to the 8180+1186 combination, the 8186 SIP Horn Speaker is available as an all-in-one SIP and PoE endpoint. The 8186 will provide the same performance as the 8180+1186 and is outdoor rated.
Specifications
| Power |
|---|
| Rated Impedance: 8 Ohm +/15% |
| Rated Power: 50W |
| Maximum Power: 100W |
| No power supply required – draws power from the 1825 or 8180 devices |
Frequency Response: 350 – 9,000 Hz (- 10 dB)Dispersion Angle: 76H x 51V (2 kHz -6dB); Oriented Vertically 11” tall x 6 5/8” Wide
| Audio |
|---|
| Speaker: Double re-entrant horn speaker |
| Sensitivity: 107 dBA +/- 3 dB 1m/1W (1 kHz) at 1.3K, 1.6K, 2K, 2.5K Hz-Avg. |
Dimensions (Product): 11” x 6.6” x 9.5” (28cm x 16.8cm x 24cm)Weight (Product): 4.0 lbs (1.8 kg) / Weight (Shipping): 4.8 lbs (2.2 kg)
| Environmental & Mechanical |
|---|
| Wiring: 18” (46cm) wire tail stripped and tinned |
| Aim Adjustment: Three axis |
| Environmental: -40 to +50° C (-40 to +122° F); Suitable for outdoor and wet environments when properly installed. |
