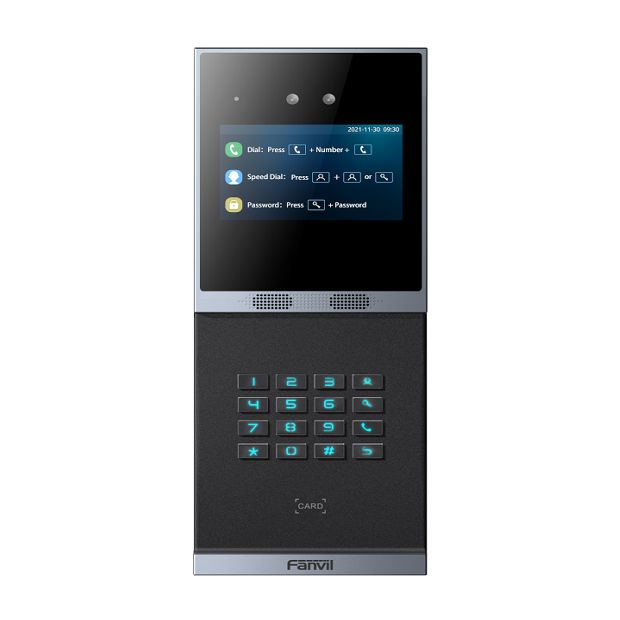

Fanvil i66 Video Door Phone for Apartments

The Fanvil i66 Video Door Phone combines video intercom, access control and visitor management in a rugged entrance device designed for apartments, residential communities and office buildings. Its 4-inch IPS colour touchscreen, built-in 2-megapixel wide-angle camera and multiple key less entry methods provide a flexible solution for modern building access.

Users can gain entry through face recognition, RFID credentials, numeric codes or compatible remote door-opening methods, while audio and video communication allows visitors to contact supported IP phones, indoor stations or mobile applications.

4-Inch Colour Touchscreen

The i66 features a 4-inch IPS colour display with a resolution of 800 × 480 pixels.

The touchscreen provides a clear interface for visitor interaction, access control and door entry functions while keeping the front panel compact and easy to use.

Face Recognition Access

The device incorporates high-precision face recognition technology for contactless entry.

According to the supplied specification, the system also supports liveness detection designed to identify attempted presentation attacks involving:

• Photographs
• Video images
• Masks

This adds another authentication layer for sites using facial recognition as an access method.

Multiple Key less Entry Methods

The Fanvil i66 Video Door Phone supports several methods of authorised door entry, allowing system designers to select the approach most appropriate for the building.

Supported methods include:

• Face recognition
• RFID card
• Numeric password or PIN
• Remote door opening
• DTMF-based access control with compatible systems

This flexibility makes the i66 suitable for installations where residents, staff and visitors may require different access methods.

2-Megapixel Wide-Angle Camera

A built-in 2-megapixel wide-angle camera provides video for compatible intercom and security applications.

The camera enables visitors to communicate visually with residents or staff using supported:

• IP phones
• Indoor intercom stations
• Mobile applications
• Video management or security systems

This allows users to identify visitors before deciding whether to grant access.

ONVIF Compatibility

Support for the ONVIF protocol allows the i66 to integrate with compatible IP video surveillance and security platforms.

This can help incorporate the door station into a wider building security environment alongside supported cameras, recorders and monitoring systems.

Rugged Outdoor Protection

The i66 carries an IP66 environmental protection rating and IK07 impact rating, making it suitable for exposed entrances and outdoor access points.

IP66 provides strong protection against dust ingress and powerful water jets, while IK07 provides resistance to mechanical impact.

The unit is specified to operate across temperatures from approximately -40°C to +70°C.

Security and Access-Control Interfaces

Built-in input and output interfaces provide additional options for integration with compatible security and door-control equipment.

The unit includes:

• Three short-circuit input ports
• Two short-circuit output ports

These interfaces can be used as part of compatible access-control, alarm and building-security configurations.

Suitable for Multi-Residential and Commercial Buildings

The i66 is designed for environments where secure visitor communication and flexible access control need to be combined in a single entrance device.

Typical applications include:

• Apartment buildings
• Residential communities
• Office buildings
• Commercial entrances
• Controlled-access facilities
• Multi-tenant properties

Fanvil i66 Video Door Phone Features

• 4-inch IPS colour touchscreen
• 800 × 480 display resolution
• Built-in 2-megapixel wide-angle camera
• Face recognition
• Liveness detection
• RFID card access
• Numeric code access
• Remote door opening
• DTMF access support with compatible systems
• Audio and video intercom communication
• IP phone integration
• Indoor station integration
• Mobile app communication support
• ONVIF protocol compatibility
• IP66 environmental protection
• IK07 impact resistance
• Operating temperature from -40°C to +70°C
• Three short-circuit input ports
• Two short-circuit output ports
• Suitable for apartments and residential communities
• Suitable for office and commercial buildings
• Designed for key less access-control applications

Fanvil i66 Datasheet
