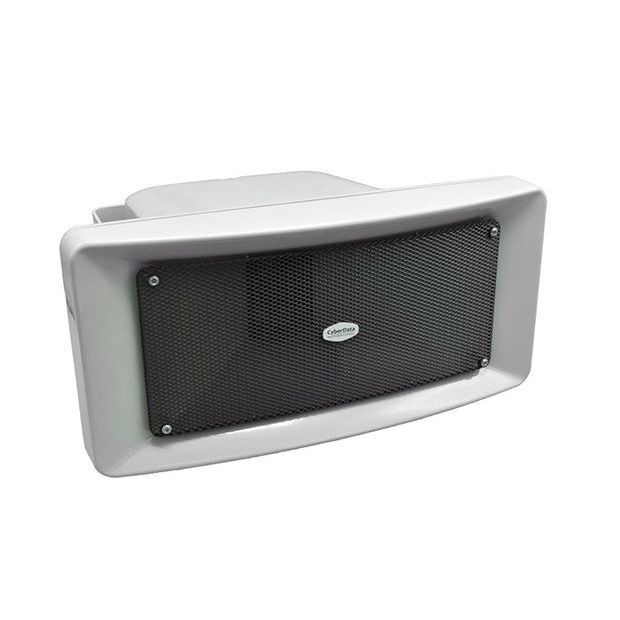

Cyberdata 011457 SIP IP66 Horn Speaker

The CyberData 011457 SIP Horn Speaker provides powerful IP-based paging for warehouses, manufacturing facilities, loading areas and other loud or outdoor environments. Its IP66-rated design makes it suitable for exposed installations, while SIP and multicast support allow the speaker to integrate into a wide range of network paging systems.

The unit can operate as a SIP paging endpoint or receive multicast audio without requiring a SIP registration, providing flexibility for both IP PBX and multicast-only deployments.

SIP-Based VoIP Paging

The horn speaker is compatible with SIP-based IP PBX platforms that support SIP RFC 3261.

This allows users to initiate paging calls directly through compatible telephone and communications systems.

A configurable security code can also be used to control access to SIP paging functions where required.

Typical applications include:

• Warehouses
• Manufacturing facilities
• Loading docks
• Outdoor work areas
• Industrial sites
• Large commercial facilities
• School grounds
• General outdoor paging

Multicast Paging and Priority Control

The CyberData 011457 SIP Horn Speaker can also receive multicast audio streams, allowing it to operate in environments where SIP registration is not required.

The device supports 10 prioritised multicast channels, enabling multiple paging sources or zones to be configured with different priority levels.

Higher-priority audio can take precedence over lower-priority streams according to the configured paging system.

Up to Nine Stored Messages

Up to nine user-uploadable page messages can be stored on the device.

Custom tones can also be uploaded, allowing the speaker to provide predetermined announcements, alerts or notification sounds without requiring every message to be streamed live from another network source.

CyberData 011457 SIP Horn Speaker is useful for applications such as:

• Emergency messages
• Routine operational announcements
• Warning tones
• Shift notifications
• Site-specific alerts

Loud Ringer Function

A second SIP extension can be configured for the loud ringer function.

This allows the speaker to provide a high-volume audible indication for incoming calls or other configured events, extending its use beyond conventional paging.

Delayed Paging

Delayed page support allows incoming audio to be buffered before playback.

This can help reduce clipped announcements and provide more consistent playback where network or paging conditions make buffering beneficial.

Digital Volume Control

Audio output can be adjusted digitally through the device configuration, allowing administrators to set an appropriate volume for the installation environment.

This is particularly useful in warehouses, industrial areas and outdoor spaces where ambient noise levels may vary considerably.

Secure Web Configuration

The speaker supports secure network administration features including:

• HTTPS web-based configuration
• HTTPS autoprovisioning
• HTTP command interface
• Firmware and configuration management

These functions allow administrators to configure and maintain the endpoint remotely over the network.

VLAN and Network Integration

Support for IEEE 802.1Q VLAN tagging allows the speaker to operate on segmented voice or paging networks.

This can help organisations separate paging traffic from other network services as part of their overall network design.

Health Monitoring and Diagnostics

Configurable event generation can provide device health and status information to compatible monitoring systems.

Built-in diagnostics also assist administrators with troubleshooting and ongoing maintenance of the paging endpoint.

Outdoor Installation

A sealed network cable gland helps protect the network connection in exposed installations.

Combined with its IP66-rated enclosure, this makes the horn speaker suitable for outdoor and demanding industrial environments where equipment may be exposed to dust and water.

CyberData 011457 SIP Horn Speaker Features

• Outdoor SIP horn speaker
• IP66-rated construction
• SIP RFC 3261 compatibility
• SIP paging security code support
• Multicast paging operation
• 10 prioritised multicast channels
• Up to nine user-uploadable page messages
• User-uploadable tones
• Digital volume control
• Loud ringer function
• Second SIP extension
• Delayed page buffering
• HTTPS autoprovisioning
• HTTPS web-based configuration
• HTTP command interface
• IEEE 802.1Q VLAN tagging
• Configurable health and status events
• Built-in diagnostics
• Cisco SRST support
• Sealed network cable gland
• Suitable for warehouses
• Suitable for manufacturing environments
• Suitable for loud areas
• Suitable for outdoor paging applications

Cyberdata 011457 SIP IP66 Horn Speaker Datasheet
