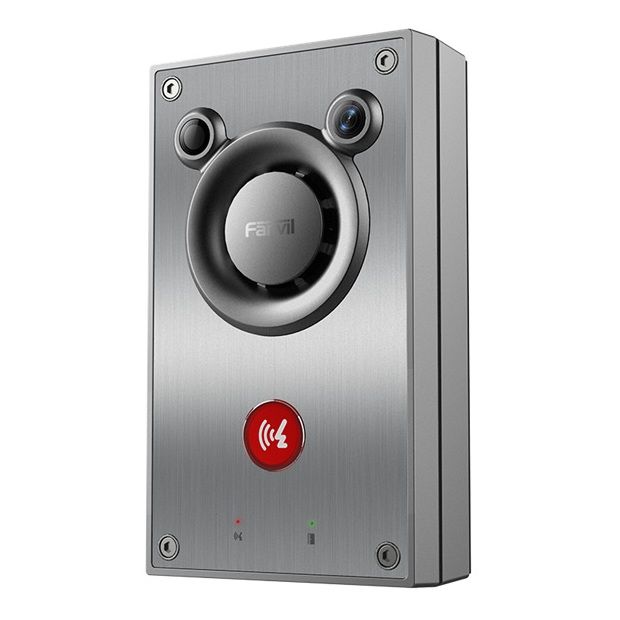

Fanvil A12V Video Intercom with 10W Speaker, Dual Mics.
- HD video: Built-in 4 Mega-pixel starlight HD camera camara and infrared light, enabling high-definition video calls.
- Excellent sound quality: With a unique turbine cavity design, bring extraordinary hearing enjoyment.
- Intelligent audio: Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments.
- Loud sound: 10W speaker, 90dB hands-free call and 100dB broadcast, sound shock.
- Remote pickup: Remote pickup can reach up to 5 meters and accurately captures every word.
- Self-check function: Voice loop self-check, simplify maintenance, reduce costs.
- Recording broadcast: Built-in SD card slot supports recording and preset broadcast, flexible and diverse.
- Beautiful and durable: Stainless steel panel with aluminum alloy structure, beautiful corrosion resistance, up to IK10 anti-riot standard.
- Protection grade: IP66 waterproof and dustproof grade, suitable for all kinds of harsh environment.
- Friendly interaction: 27mm backlit big button, dual status indicator (call, control), intuitive and friendly operation.
- High compatibility: Compatible with SIP-based mainstream IP PBX/ softswitch /IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
- Alarm light: Built-in 1 wet node output, can drive the external alarm light.
- Rich interfaces: Audio line output, short circuit input/output, Wiegand, USB, RS-485, to meet diverse needs
If pre-shipment programming, onsite installation or remote support services are required, please email us for Quote.
- Estimated delivery time for items in stock is 3-4 days.
- Estimated delivery time for backorders will be advised by email.
- For large projects or quantity orders, please email us for Project Price.
The Fanvil A12V Video Intercom is a rugged SIP intercom designed for environments requiring powerful audio, high-quality video and extensive security-system integration. Combining a 10W speaker, dual microphones, a 4-megapixel starlight camera and durable stainless-steel and aluminium-alloy construction, the A12V is suited to entrances, industrial facilities, security points and other demanding communication applications.
With IP66 environmental protection and IK10 impact resistance, the unit is designed for reliable installation in exposed and high-traffic locations.
Powerful 10W Audio
The A12V incorporates a 10W speaker and specialised acoustic chamber designed to provide strong voice and broadcast output.
The supplied specification states output levels of:
- Up to 90dB for hands-free calling
- Up to 100dB for broadcast applications
This makes the unit suitable for environments where announcements or intercom audio need to remain clearly audible.
Dual-Microphone Voice Capture
A dual-microphone system works with advanced voice-processing technologies to improve intelligibility in challenging acoustic environments.
Supported audio processing includes:
- Acoustic Echo Cancellation (AEC)
- Automatic Noise Reduction (ANR)
- Automatic Gain Control (AGC)
- Automatic Volume Control (AVC)
Voice pickup is specified at distances of up to 5 metres, allowing users to communicate without needing to stand directly in front of the intercom.
Actual pickup performance will depend on background noise, acoustics and installation conditions.
4MP Starlight Camera with HDR
The integrated 4-megapixel starlight wide-angle camera provides high-resolution video for compatible intercom applications.
Video features include:
- 4MP image sensor
- Wide-angle viewing
- Starlight low-light capability
- Built-in infrared illumination
- HDR technology
These features help maintain useful image quality across changing lighting conditions, including darker entrance areas.
Fanvil A12V Video Intercom Audio and Video
The combination of high-output audio, dual-microphone voice capture and 4MP video allows the A12V to operate as a complete voice and video communications endpoint.
It can be integrated with compatible SIP systems for applications such as:
- Visitor communication
- Security intercoms
- Entrance monitoring
- Industrial communication
- Emergency assistance
- Paging and broadcasting
- Access-control systems
Recording and Preset Broadcasts
A built-in SD card slot supports recording and preset broadcast functionality.
This allows stored audio content to be incorporated into compatible paging or notification applications, providing additional flexibility beyond live intercom communication.
Audio Self-Check
The A12V includes a voice-loop self-check function designed to assist with device monitoring and maintenance.
Automated audio checking can help identify potential communication problems without requiring every unit to be manually tested in the same way.
Rugged Outdoor Construction
The enclosure combines a stainless-steel front panel with an integrated aluminium-alloy structure.
Its specified protection ratings include:
- IP66 environmental protection
- IK10 impact resistance
IP66 provides strong protection against dust ingress and powerful water jets, while IK10 represents a high level of resistance to mechanical impact.
The corrosion-resistant construction also makes the device suitable for demanding outdoor or industrial locations.
Large Illuminated Call Button
A 27mm backlit button provides a prominent interaction point for users.
Dual status indicators provide visual feedback for functions such as calling and control, helping users understand the current operating state of the intercom.
Extensive System Interfaces
The A12V provides a broad selection of interfaces for integration with compatible access-control, security and audio systems.
Interfaces listed in the supplied specifications include:
- Audio line output
- Short-circuit input
- Short-circuit output
- Wiegand
- USB
- RS-485
- External alarm-light output
This provides installers with flexibility when incorporating the device into more complex building communication and security systems.
SIP Platform Compatibility
The A12V is designed to integrate with compatible SIP-based IP PBX, softswitch and IMS platforms.
The supplied compatibility list includes platforms such as:
- Asterisk
- BroadSoft
- 3CX
- Metaswitch
- Elastix
- Avaya
Actual features and interoperability will depend on the selected platform and system configuration.
Fanvil A12V Video Intercom Features
- SIP video intercom
- Built-in 4-megapixel starlight camera
- Wide-angle video
- Infrared illumination
- HDR image processing
- 10W speaker
- Up to 90dB hands-free call output
- Up to 100dB broadcast output
- Dual microphones
- Voice pickup up to 5 metres
- AEC, ANR, AGC and AVC audio processing
- Voice-loop self-check
- Built-in SD card slot
- Recording support
- Preset broadcast capability
- Stainless-steel front panel
- Aluminium-alloy structure
- IP66 environmental protection
- IK10 impact resistance
- 27mm illuminated button
- Dual status indicators
- Audio line output
- Short-circuit input and output
- Wiegand interface
- USB interface
- RS-485 interface
- External alarm-light output
- Compatibility with supported SIP communications platforms
