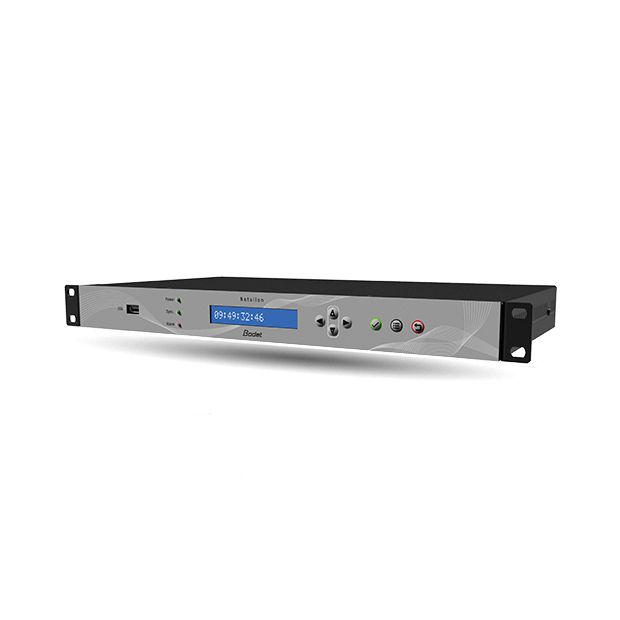

Bodet Netsilon 7 NTP Time Server with GPS

Bodet Netsilon 7 is everything you expect from a time server: a precise and accurate time for reliable timestamping of events. Effective and easy to use, it is a concentration of technology that meets the latest standards. This is done securely thanks to its internal time base and single sign-on protection. It meets regulatory obligations in terms of cybersecurity, an issue that is now unavoidable in all sectors of activity.

Compact and modular, the Netsilon 7 time server combines the accuracy of a master clock with the secure approach of data networks:
• High precision internal clock with its TCXO quartz.
• Priority order for the different synchronisation references (input).
• Modular design allowing a wide variety of input/output signals (up to 4 expansion cards).
• Network security management: Enable/disable encryption, authentication, and access protocols.
• Alarm information available as SNMP traps and email.

Time accuracy at an affordable price

Netsilon 7 technical characteristics perfectly match the needs of non-critical systems. It synchronises the IT network(s) and all IT equipment (computers, printers, video surveillance systems, etc.). Thanks to the accuracy of the time distributed, time stamping allows you to build an accurate and reliable database of events that occur on the network. These data enable you to monitor that the equipment is functioning correctly.

Features

Compact and modular, the Netsilon 7 time server combines the accuracy of a master clock with the secure approach of data networks:
• High precision internal clock with its TCXO quartz.
• Priority order for the different synchronisation references (input).
• Modular design allowing a wide variety of input/output signals (up to 4 expansion cards).
• Network security management: Enable/disable encryption, authentication, and access protocols.
• Alarm information available as SNMP traps and email.

Technical Information

• Internal oscillator TCXO
• Precision (average after 24h with GPS or GLONASS signal) 1*10^-9
• Stability (average after 2 weeks with GPS or GLONASS signal) 1*10^-7/day
• Holdover (after 2 weeks of GPS or GLONASS synchronisation at constant temperature) 5 ms (after 24h)
• Operating temperature From 0 °C to 50 °C
• Dimensions 487 x 245 x 44.2 mm (19” 1 U)
• Power supply (without fan) DC : 22-30V  / 3.2-1.9A AC : 100-240V  / 50-60Hz / 1.9-0.8A

Security

• Activating/disabling protocols Yes
• Single sign-on protection Yes
• DES and AES encryptions Yes
• SSL Encryption Yes
• SCP Yes
• SFTP Yes
• LDAP / LDAPS / ADIUS authentication: Yes

Application Areas

Industries, production companies, logistics platforms, hospitals, pharmaceutical laboratories, airports, railway stations, data centres… All entities concerned by the issues of performance, time stamping, cybersecurity and network security.

Netsilon 7 Time Server Datasheet
