2N 916031 - 2N Access unit 2.0 with Fingerprint Reader
IP Access Control Units

2N 916031 – 2N Access unit 2.0 with Fingerprint Reader

0 out of 5

Maximum security, high reliability with rapid fingerprint reading.

  • Reliable optical technology
  • Innovative and functional design
  • False fingerprint detection
  • Web interface administration
  • Tamper Protection
  • Multi Factor Authentication
  • 2N Remote configuration

To order Surface or Flush Mounting kit, please click on 2N IP Access Unit Mounting Kits or browse Accessories & Complementary Products tab below.





Request Quote

If pre-shipment programming, onsite installation or remote support services are required, please ask us for Quote.

  • Check Mark Estimated delivery time for items in stock is 3-4 days.
  • Check Mark Estimated delivery time for backorders will be advised by email.
  • Check Mark For large projects or quantity orders, please email us for project price.
  • Visa Card
  • MasterCard
  • PayPal
GUARANTEED SAFE CHECKOUT

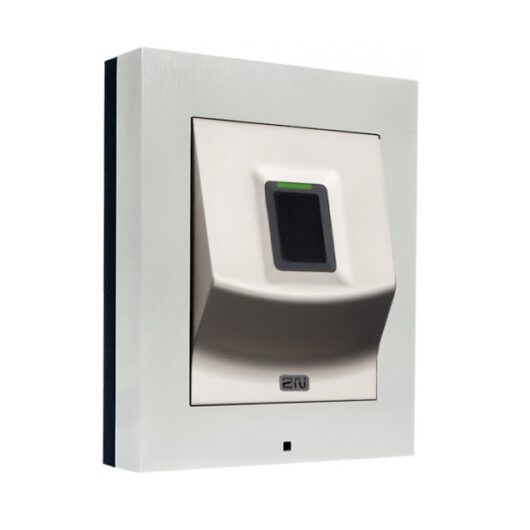

2N 916031 – 2N Access unit 2.0 is an IP access control unit equipped with fingerprint reader. Thanks to its optical sensor, it provides maximum security, high reliability, and rapid fingerprint reading response. It works on indoor and outdoor installations under any weather conditions.

The unit can be used in residential and corporate applications where RFID or keypad access technology is uncommon or where modern and luxury technology is important. This unit functions as a stand-alone access device, but can be expanded to feature a numerical keypad, backlit info panel, or any other 2N Verso range module. Each option requires additional mounting/finishing components in order to complete the device.

2N 916031 – 2N Access unit 2.0 Features

RELIABLE OPTICAL TECHNOLOGY
2N 916031 – Access unit 2.0 with Fingerprint Reader uses optical fingerprinting technology to read a fingerprint, ensuring reliable identification of the user when their finger is first applied to the reader.
INNOVATIVE AND FUNCTIONAL DESIGN
The access control unit is designed so that you can simply place your finger on the sensor without the need to press it down unnaturally.
FALSE FINGERPRINT DETECTION
A fingerprint is a user’s unique identifier which cannot be stolen, but can be copied. Our access control unit can detect such fake fingerprints.
2N® REMOTE CONFIGURATION
Save time and money for onsite support thanks to our free service. Access all your devices remotely via secured cloud connection. Fastest response to your customers requests.
ADDING NEW FINGERPRINTS
Loading a new fingerprint is crucially important for correct evaluation during real use. For this reason, the user must have their finger scanned three consecutive times to guarantee an optimum match.
SIMPLE INSTALLATION
A single ethernet cable, Power over Ethernet, and the option to connect a lock, exit button, or door contact directly to the unit make installation very simple.
WEB INTERFACE ADMINISTRATION
Simply connect the access control unit to your LAN and everything can be set up via the intuitive web interface.
TAMPER PROTECTION
2N 916031 – Access unit 2.0 with Fingerprint Reader is equipped with a mechanical protective switch. As soon as anyone attempts to damage the unit mechanically, the switch is activated and an alarm is set off.
MULTI-FACTOR AUTHENTICATION
Other expansion modules (an RFID reader, keypad, or Bluetooth) can be connected to the 2N® Access Unit Fingerprint Reader ensuring dual identification of users in areas with a high level of security.
SENSOR RESISTANT TO EXTERNAL FACTORS
Thanks to its mechanical properties, the fingerprint reader is designed for both indoor and outdoor installation.
ACOUSTIC AND VISUAL SIGNALLING
Acoustic and visual LED signalling located directly above the sensor indicate the fingerprint reader’s status.

2N Access Unit Fingerprint Reader Datasheet

2N 916031 - 2N Access unit 2.0

Specifications

Description 916031
Sensor Optical touch sensor
Sensor surface Sensor surface protected by toughened glass
False fingerprint detection Yes
LED Indication using multicoloured LEDs
Resistance Moisture and dust-resistant
Ambient light suppression Works even in direct sunlight
Large fingerprint reading surface 15.24 x 20.32 mm
Operating temperature -20°C ~ 55°C
Certification FBI PIV
Dimensions 99(W) x 123(H) x 47(D) mm
Dimensions: Frame for fitting on surface 107(W) x 130(H) x 28(D) mm (additional 18(D) mm for 916031 unit)
Dimensions: Frame for recess fitting in wall 130(W) x 153(H) x 5(D) mm (additional 18(D) mm for 916031 unit)
Box for mounting in wall (dimension of minimum hole in wall) 108(W) x 131(H) x 45(D) mm
Weight (Net) 0.40kg
Weight (Gross) 0.45kg
